PCB Design and Software Development IC Supply Chain

Product Description

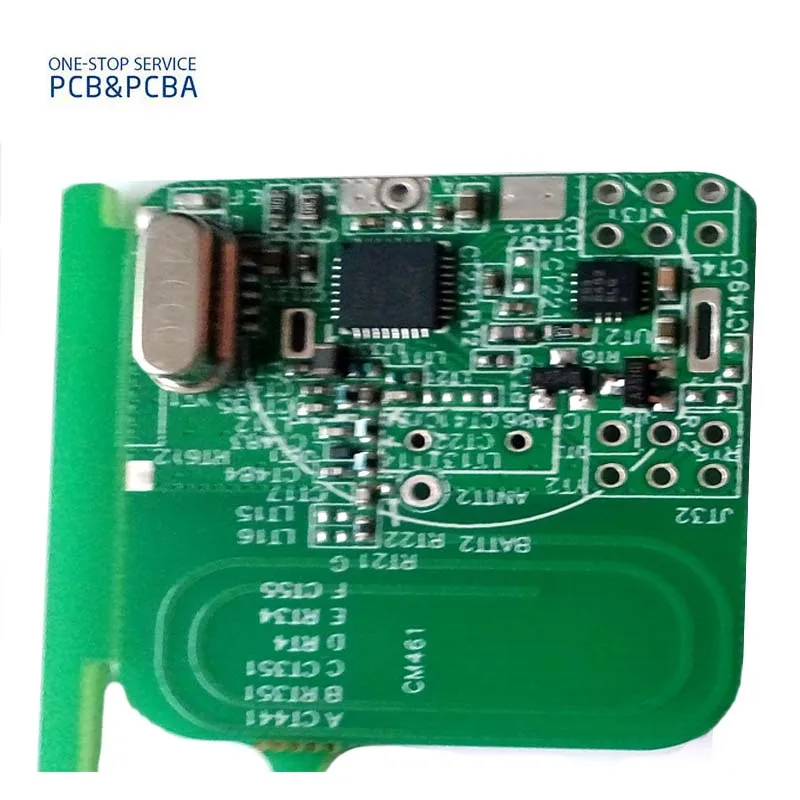

This is a 8-Layer high TG FR-4 HDI rigid PCB.

Product Parameter:

Layer8-Layer
MaterialFR-4
Board Thickness1.0 mm
Min. Hole Size0.1 mm
Min. Line Width0.08 mm
Min. Line Spacing3 Mil
Copper Thickness0.5/1 OZ
Surface FinishingImmersion Gold


Buying Guides

Our Manufacture Capacity:



ItemMass ProductionSample
Main MaterialCEM-1,CEM-3, FR-4 Tg 135/ Tg 170, RogersCEM-1,CEM-3, FR-4 Tg 135/ Tg 170, Rogers
Min Line Width/Space0.07mm/0.07mm0.05 mm /0.05 mm
Min Drilling Diameterφ 0.1mmφ 0.1mm
Drilling Tolerance+/- 0.05 mm+/-0.05 mm
Max.Outer Layer Copper Thickness8 Oz10 Oz
Max.Inner Layer Copper Thickness6 Oz8 Oz
Impedance Control Tolerance+/- 10%+/- 10%
Layers

1-40 lA

1-40 lA

Max Drilling Aspect Ratio

20:120:1

Max Panel Size

23"*35"23"*35"

Max.Finished Board Thickness

7.0 mm7.0 mm

Production Capacity Per Month

30,000 m²/



Production Lead Time:



ItemSampleMass Production
Single-Layer1-2 days3-5 days
Double-sided2-4 days5-10 days
Multi-Layer Boards4-10 days5-20 days
HDI Boards5-12 days10-20 days

 *Special material ordered lead time is not included.

FAQ
  1.  How to contact us?
    Answer: You can contact oline or send us email for any question.

  2. How t start for inquiry?
    Answer: Please send us full manufacture requirements and documents for quotation, i.e. gerber files, BOM, samples if it is necessary.

  3. What are your main services?
    Answer: We offer one-stop service of PCB/PCBA manufacture, including PCB design, PCB manufacture, component sourcing, assembly (SMT, DIP,COB).

  4. Do you offer prototype production? What is the lead time?
    Answer: We can prepare both sample and mass production. The fastest lead time for double-sided samples is 36 hours. PCBA prototype can be 48 hours including both BOM sourcing and SMT.

  5. How is your quality?
    Answer: We test both PCB and key components 100% before delivery. Aim to set up long term cooperation with customers. We provide products with reliable quality.

  6. What is your warranty?
    Answer: 6 months
