2.54 mm Custom Brass Gold Plated Pogo Pin Threaded Spring Pins

  • >=1 Pieces
    $0.20
Cross Reference:
pogo pin
Supplier Type:
Original manufacturer
Lead Time:
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 15 Negotiable
Customization:
other (Min. Order: 1 Pieces)
Samples:
$10.00 /Piece | 1 Piece (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Model Number:
pogo pin, guangdong
Application:
terminal connectors, PCB
Type:
Headers and PCB Receptacles, Circular Connectors, Terminal Connectors, Discrete Wire Housing Connector, Contact Connector, RF Connector, Power connector, D-Subminiature Connector, Power Entry Modules, FFC-FPC Connector, Backplane Connector, HDMI
Packaging:
Tape & Reel (TR)
Brand:
wonstron
Interface Type:
terminal
Gender:
Male
Brand Name:
OEM
Name:
Spring pin connector
Shape:
spring loaded pogo pin
Use for:
Contact
Size:
2.54mm
Material:
Brass
Supply Ability
Supply Ability:
1000000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
PE Bags+Cartons
Port
shenzhen
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 15 To be negotiated
2.54 mm Custom Brass Gold Plated Pogo Pin Threaded Spring Pins
Products Description
Materials: * Insulator: Black high temperature plastics UL 94V-0
* Plunger: Brass 0.125um Au over Ni.
* Spring: SUS surface treatment
* Barrel: Brass 0.125um Au over Ni.

Mechanical:
* Contact force: 70g±20g at 1.0mm working stroke
* Full stroke: 1.4mm
* Life test: 20,000 cycles

Electrical:
* Rated current & voltage: DC12V;3A Max
* Contact resistance: 50 milliohm Max.

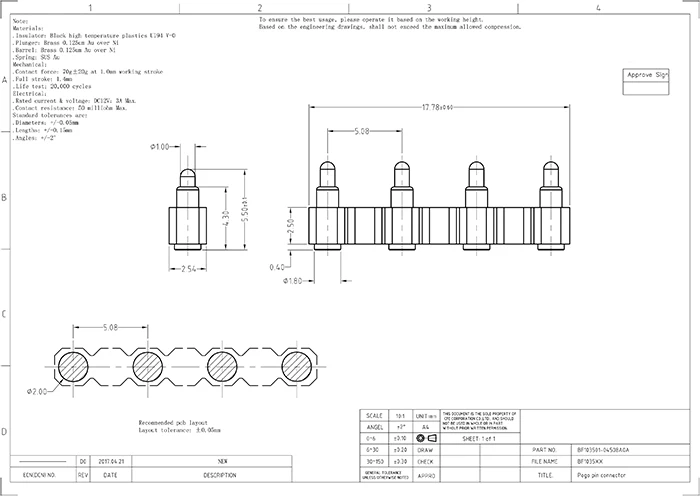

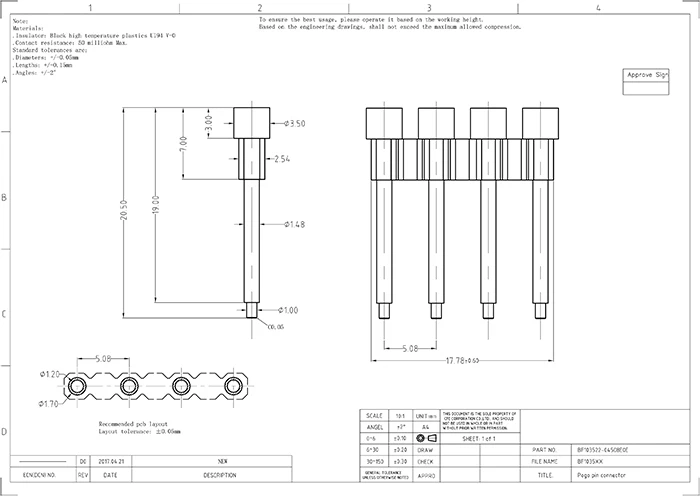

Details Images
Company Profile
    Thanks for visiting Wonstron Electronics Co., Ltd!
    We are professional Electronics manufacturing company with good reputation in the field.Aim at being a world one-stop service PCBA house Wonstron Electronics.Co.,Ltd (in short Wonstron) keeps pace with update technologies and developing its capacity. Our PCB products range from 1-40 layers with high-frequency and blind/buried vias which are widely applied in automative,industrial,communication,energy fields, Medical,etc.We have six SMT lines in house for EMS service.Now our monthly production capacity can reach 350,000 sq.ft for rigid PCB,100,000 sq.ft for flexible PCB and 100,000,000 points for SMT/EMS.

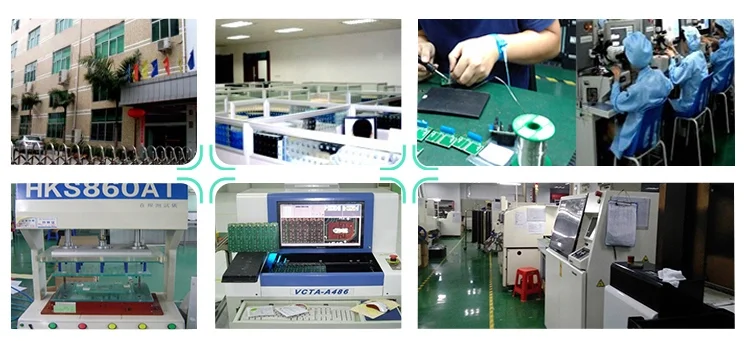

Manufacturing Technique
Our Manufacture Capacity:
Item
Mass Production
Max Stencil Size
1560mm*450mm
Min SMT Package
0201
Min IC Pitch
0.3mm
Max PCB Size
1200mm*400mm
Min PCB Thickness
0.35mm
Min Chip Size
001005
Max BGA Size
74mm*74mm
BGA Ball Pitch
1.0-3.00
BGA Ball Diameter
0.2 - 1.0mm
QFP Lead Pitch
0.2mm-2.54mm
SMT Capacity
2 million points per day
Production Lead Time:
Item/Lead Time
Samples
Mass Production
Components
1-2 days
5-10 days
SMT
1-2 days
5-10 days
Delivery
3-5 days
5-20 days
*There will be exception for components with extremely long lead time.
Our Advantages
1.One-stop service covering hardware design + software program + PCB layout + PCB assembly + casing service for customers.

2.More than 20-year experiences with PCB,PCBA production in automatic,auto,medical,industrial control, security, communications, power supply filed. We help our customers to deal with their difficulties in the production and cost down by sourcing from China.

3.We provide full BOM sourcing for all kinds of electronic.parts,connectors,plastic mold and cable,etc.
We have most professional component sourcing team and competitive sourcing channels with guarantee quality.

4.Instant feedback and short delivery time.We provide 24-hour online service for global customers.We quote BOM within 24 hours and PCB assembly prototype in 5 days.

5.Both prototype and mass production are acceptable.There is no minimum order quantity restrictions.

6.We test both PCB and key components 100% before delivery.Our warranty is 12 months for all the boards and products.

7.We provide credit to our long-term cooperation customers.
Certifications
Customer Photos
FAQ
1. How to contact us?
Answer: You can contact oline or send us email for any question.

2. How start for inquiry?
Answer: Please send us full manufacture requirements and documents for quotation, i.e. gerber files, BOM, samples if it is necessary.

3. What are your main services?
Answer: We offer one-stop service of PCB/PCBA manufacture, including PCB design, PCB manufacture, component sourcing, assembly(SMT, DIP, COB).

4. Do you offer prototype production? What is the lead time?
Answer: We can prepare both sample and mass production. The fastest lead time for double-sided samples is 36 hours. PCBA prototype can be 48 hours including both BOM sourcing and SMT.

5. How is your quality?
Answer: We test both PCB and key components 100% before delivery. Aim to set up long term cooperation with customers. We provide products with reliable quality.

6. What is your warranty?
Answer: 6 months.
